December 31, 2011

New Suzuki DL650 V- Storm



Class sports touring class "medium" re presence of new contestants, Suzuki V-Storm 650 ABS. Suzuki, they managed to improve the appearance of motor sport touring version of the Suzuki 1.000cc that exist today. Suzuki V-Storm 650 ABS is called a lighter, more comfortable, and younger ride.

Through improvements in valve timing and the gearbox, then some of the benefits just mentioned can be presented, among them muffle the sound of snoring on the machine, as well as higher engine speed that produces a more sporty driving sensation began the first tooth to tooth six. Movement of teeth is also called the more refined and accurate.

Compared to its predecessor, this new variant is lighter six pounds and now weighs only 214 kg. This also affected the capacity of the tank the more petite two liters to 20 liters today. Although the smaller tank capacity, but with a full tank capacity is still able to travel more than 350 km. Or in other words, its fuel consumption of about 17.5 km / liter.

The front of the Suzuki V-Storm 650 ABS 2012 the most visible changes is reminiscent of the Suzuki Gladius. Section windshield repaired as well, after the previous feature widely criticized. But the feature that most attention is the application of ABS braking systems as standard features. With the support of a soft suspension settings for long trips and semi off-road tires, Suzuki V-Storm 650 ABS 2012 model is ready to ride for the biker who likes to explore.

Specification Suzuki DL650 V-Storm 2012











Make Model
Suzuki DL 650 V-Storm
Year
2012
Engine Type
Liquid cooled, four stroke, 90°-V twin, DOHC, 4 Valve/cylider
Capacity
645cc
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.2:1
Induction
Fuel Injection
Ignition / Starting
Electronic Ignition / electric
Oil Capacity
3.0 L (3.2 US / lmp qt)
Lubrication System
Wet sump
Max Power

Max Torque

Transmision / Drive
6 speed / chain
Primary Reduction Ratio
2.088 (71 / 34)
Final Reduction Ratio
3.133 (47/15)
Rake/Trail
26° /110mm (4.3in)
Front Suspension
Telescopic. Coil spring, oil damped
Rear Suspension
Link type, coil spring, oil damped
Front Brake
Double disc
Rear Brake
Single disc
Front Tyre
110/80R19M/C 59H
Rear Tyre
150/70R17M/C 69H
Seat Height
835 mm (32.9 in)
Curb Weight
214kg / 472 lbs
Fuel Capacity
20 liter / 4.4 gal



December 28, 2011

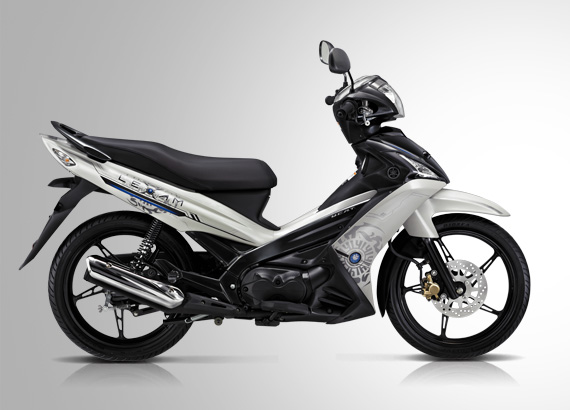

Yamaha Lexam

With the increasingly rapid development period as well as the ever increasing technological advances, all industry players do not want to miss in terms of production as well as motorcycle manufacturer Yamaha. Welcoming in 2012 Honda launch new products labeled Lexam matic motor, here I am posting pictures, Spesifcation, and prices on the road to Jakarta and surrounding areas ....
Hopefully this information useful for you

December 27, 2011

LEXAM





  Lexam, Price, Picture, and Specification


Type of Machine


Step 4, 2 Valve SOHC, Air Cooled

Amount / Position Cylinders


Single Cylinder / Vertical

Volume of Cylinders


113.7 cc

Bore x Stroke

50.0 x 57.9 mm

Comparison of compression

9.30: 1

Maximum Power

6:49 kW / 8000 rpm

Maximum torque

8.73 Nm / 7000 rpm

Starter system

Electric Starter and Kick Starter

Lubrication systems

Wet

Engine Oil Capacity
Total: 1.150 Liter / Replacement Periodical: 0.94 Liter

Fuel System

Carburetor BS25-52 x 1

Type Clutch

Wet, Centrifugal Clutch, Multiplat

Type of Transmission

V-belt Automatic and Secondary reduction Chain / Chain Drive

Transmission Operation Pattern

Automatic CVT




CHASIS :



Frame Type

Bone Steel Pipe Down / Steel Tube Underbone

Front suspension

Telescopic
Rear suspension

Swing Arm, Dual Suspension
Front Tire
70/90-17M/C 38P
Rear tires
80/90-17M/C 44P
Brakes Front
Disc
Rear brakes
Drum


ELECTRICITY

Ignition system
DC-CDI
Battery
YTZ5S (MF BATTERY 12V 3.5 Ah)
Plug
C6HSA (NGK)



Price: 16.46 million,-Prices on the road to Jakarta and surrounding areas

BYSON




  Picture, and Specification



Type of Machine


Step 4, 2 Valve SOHC, Air Cooled

Amount / Position Cylinders


Single Cylinder / Vertical

Volume of Cylinders


153 cc

Bore x Stroke

58.0 x 57.9 mm

Comparison of compression

9.5: 1

Maximum Power

10.1 kW / 7500 rpm

Maximum torque

13.6 Nm / 6000 rpm

Starter system

Electric Starter and Kick Starter

Lubrication systems

Wet

Engine Oil Capacity
Total: 1.2 Liter / Replacement Periodical: 1 Liter

Fuel System

Carburetor BS26 x 1

Type Clutch

Wet, Manual Clutch, Multiplat

Type of Transmission

Return, 5 Speed

Transmission Operation Pattern

1 - N - 2 - 3 - 4 - 5

December 25, 2011

Honda CBR 125

  Spesification Honda CBR 125

Model
Honda CBR125
Year
2011
Engine
Liquid cooled, four stroke single cylinder, SOHC, 2 valve
Capacity
124.7
Bore x Stroke
58 x 47.2
Compression Ratio
11.0:1
Induction
28mm VK-type carb
Ignition / Starting
Capacitor Discharge (CDI)
Max Power
9.7 KW @ 1000 rpm
Max Torque
10.1 Nm @ 8000 rpm
Transmision Drive
6 speed / chain
Front Suspension
31mm telescopic fork, 190mm wheel travel
Rear Suspension
Monoshock Damper, 120mm wheel travel
Front Brakes
Single 276mm disc 2 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
80/80-17
Rear Tyre
100/80-17
Dry Weight
115.kg
Fue Capacity
10 litres

MIO SOUL & SPORTY






ENGINE

Engine type                                 : 4 Stroke, 2 Valve SOHC, Fan Cooled

Amount / Position Cylinders : Single Cylinder / Horizontal

volume of Cylinders                     : 113.7 cc

Bore x Stroke                             : 50.0 × 57.9 mm

comparison of Compression        : 8.8: 1

Maximum Power         : 6.14 kW / 8000 rpm

Maximum torque          :7.84 Nm / 7000 rpm

Starter system              : Electric Starter and Kick Starter

Lubrication systems      : wet

Engine Oil Capacity      : Total: 0.9 Liter / Replacement Periodical: 0.8 Liter

Fuel System                  : Carburetor NCV24 x 1

type Clutch                   : Dry, Centrifugal Clutch

type of Transmission     : V-belt Automatic

Transmission Operation Pattern : Automatic CVT

Price on the road to Jakarta and surrounding areas : 13.565.000,-
